A6320 Standard Digital HV Brushless

A6320 Standard Digital HV Brushless Visualizza ingrandito


Nuovo prodotto

servo HV in metallo

per MB-339 jet

Maggiori dettagli

4 Articoli

109,00 € tasse incl.

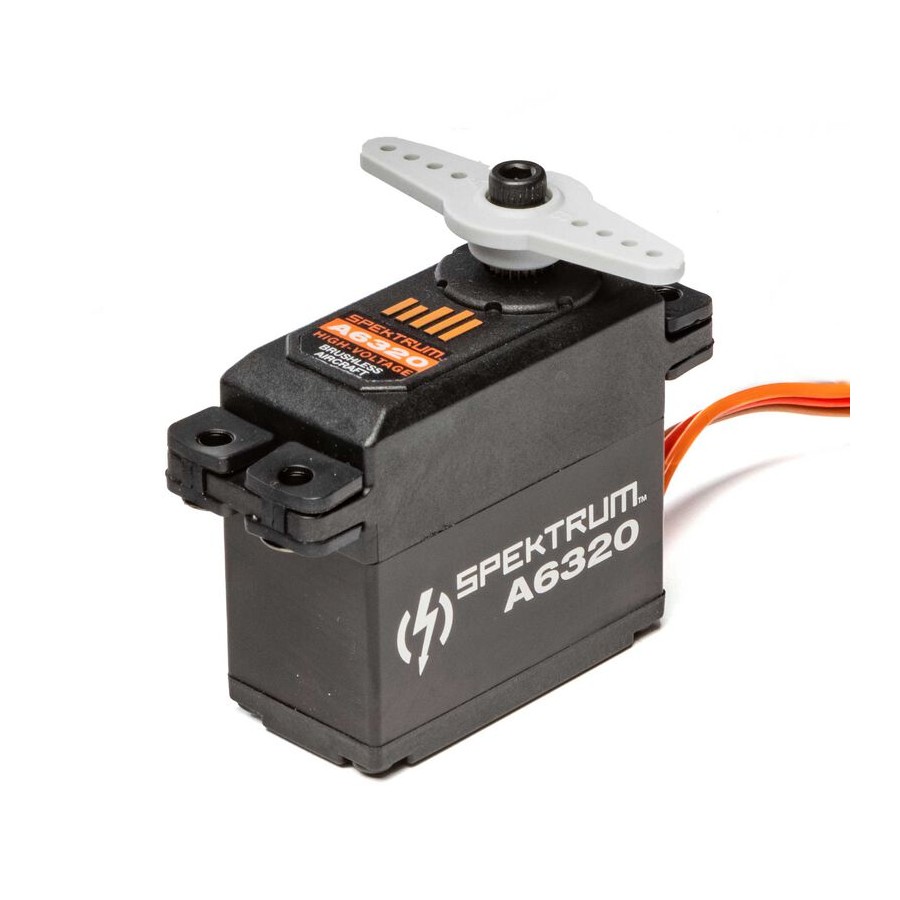

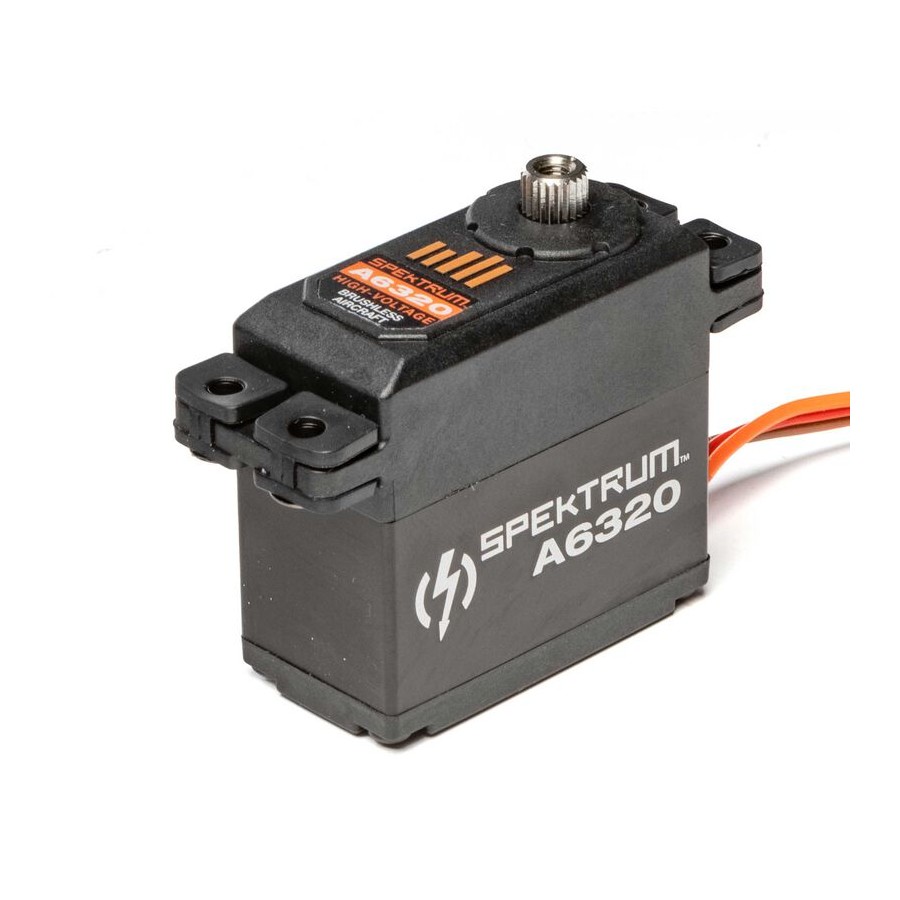

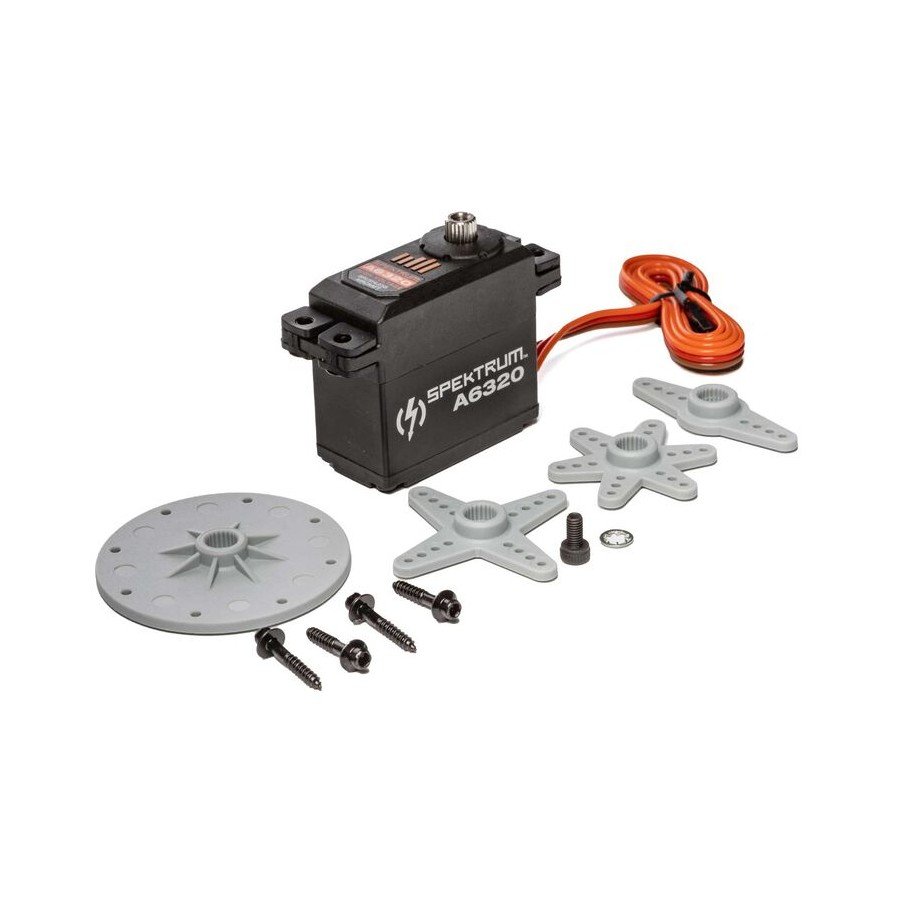

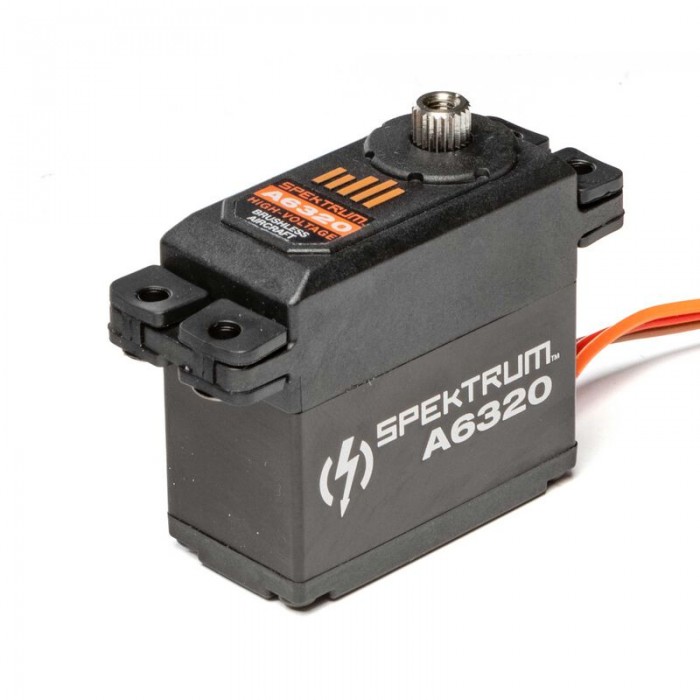

A6320 Standard Digital HV Brushless Mid Torque Metal Gear Aircraft Servo

Key Features

  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum center servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 50-400hz


Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6320 uses this solid foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets.

Deadband 3µs
Product Application Air
Application Airplane
Product Weight 2.2 oz (62 g)
Spline Count 23 - Tooth
Water-Resistant No
Programmable No
Servo Size Category Standard

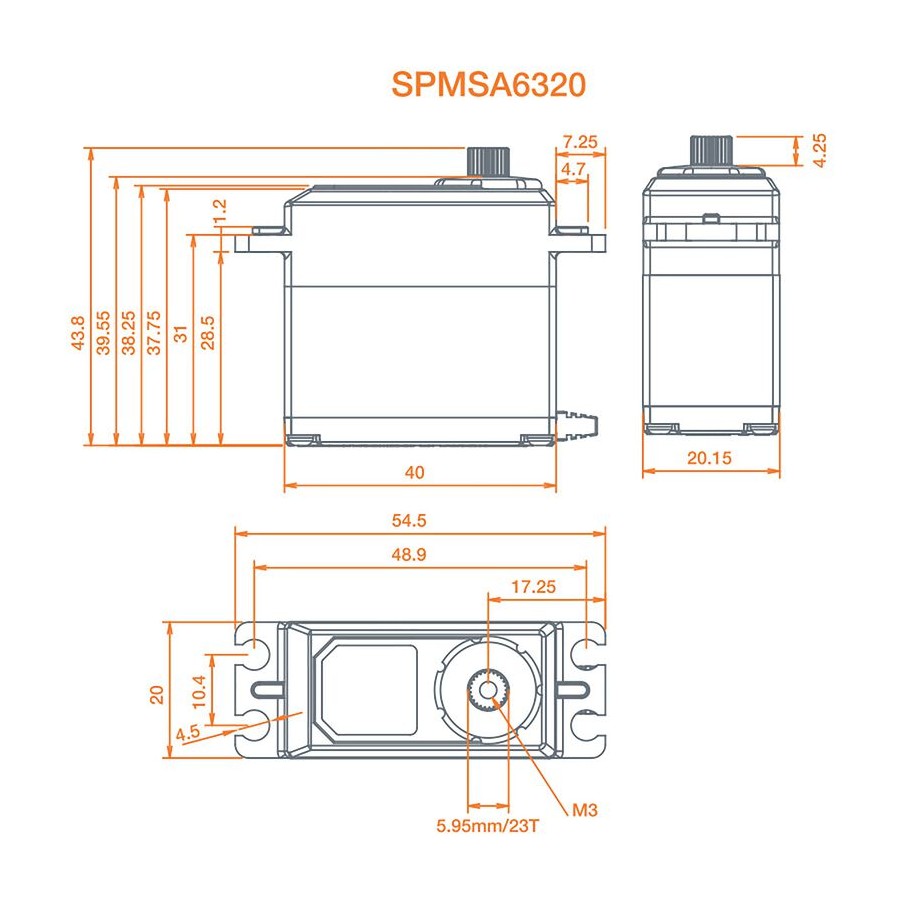

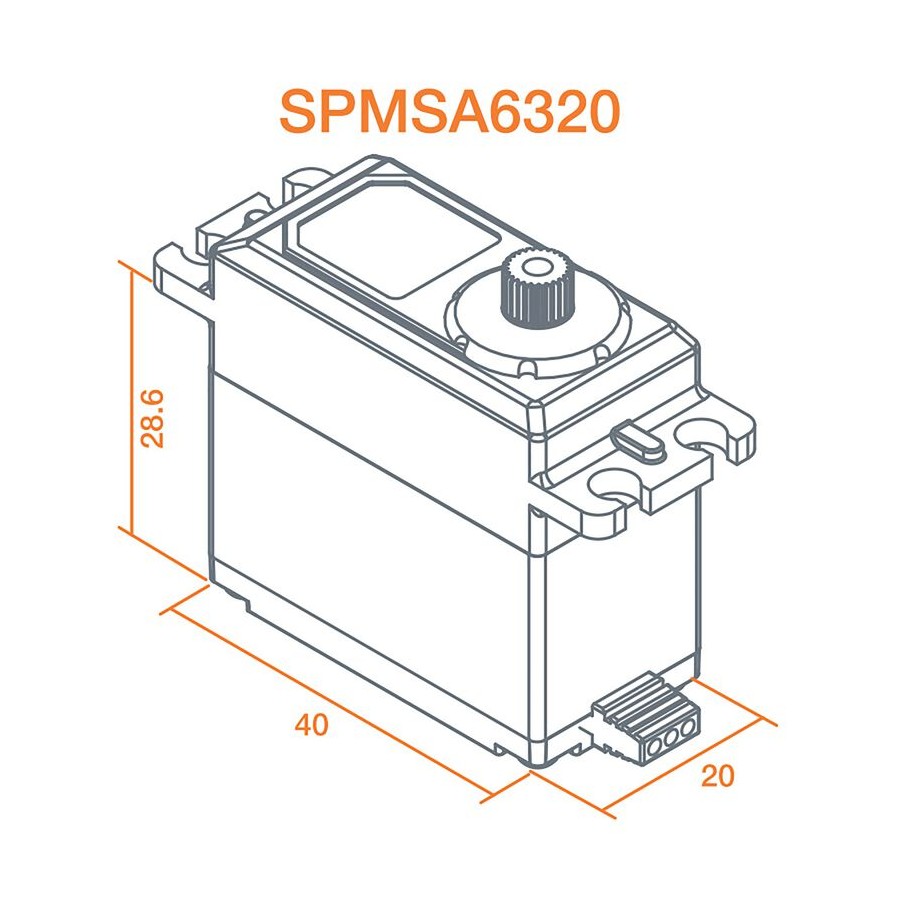

Product Width 0.79" (20 mm)
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
Connector Type Universal
Maximum Servo Speed 0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
Product Length 1.57" (40 mm)
Product Height 1.49" (38 mm)
Servo Type Digital
Motor Type Brushless
Servo Operating Voltage 6.0 - 8.4V (HV)
Maximum Servo Torque 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
